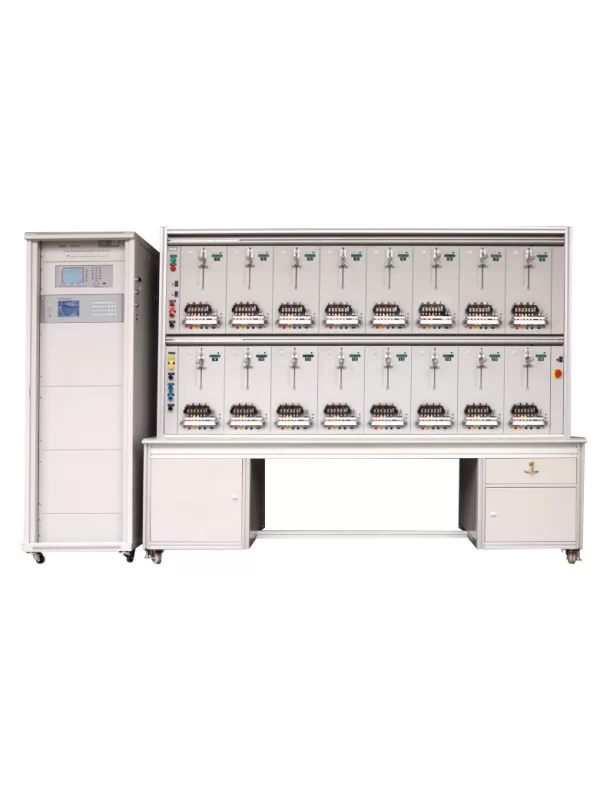

Three-phase energy meter test table with multiple meter connection positions.

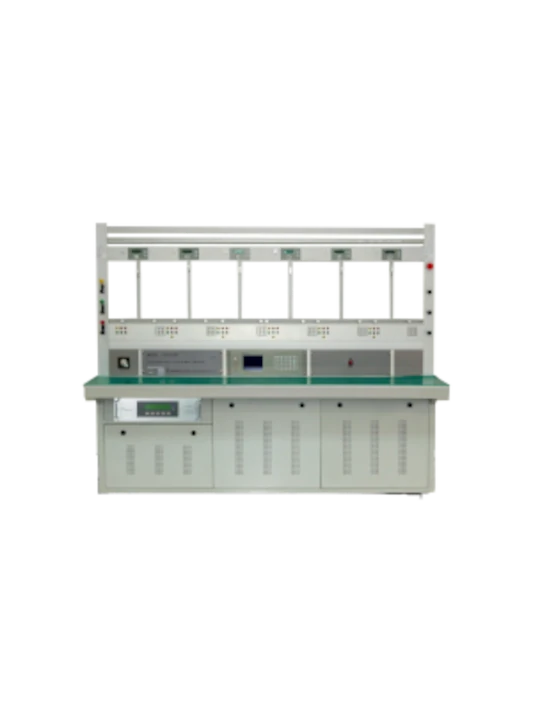

Six-position energy meter test bench.
  1. Three-phase energy meter test table with multiple meter connection positions.
  2. Six-position energy meter test bench.

Three Phase Energy Meter Test Table – IEC62057 Standards

3PH Energy Meter Test Table Features
  • Accuracy class 0.05
  • Stability 200ppm
  • Amplitude accuracy 0.05%
  • Measuring range: 30V-560V, 10mA-120A
  • Positions 12 /16 /20 are optional
  • Smart meter commucation verication via DLMS protocol



Category:

Comply IEC62057 Test equipment, techniques and procedures for electrical energy meters,  IEC62053 Electricity metering equipment,  DLMS (Device Language Message Specification) or COSEM (Companion Specification for Energy Metering).



●  Test energy meter with close link via ICT

●  Warm up                         ●  Basic error test                          ●  Standard deviation

●  Repeatable test              ●  Latent test (no load)                 ● Initial test (starting test)

●  Voltage influence          ●  Frequency influence                 ●  Deviation test for 24 hours

●  Harmonic test               ●  Unbalance voltage test              ●  Unbalance current test

●  Neutralcurrent test      ●  Neutral missing testing            ●  Breaker tripping test
