A fully automatic energy meter calibration and functional verification line calibrates energy meters and checks their functions automatically. Utilities, energy meter manufacturers, testing laboratories, and regulatory agencies use these systems to check meter accuracy and reliability.

Typical components include:

• A conveyor system to transport the energy meters through the system
• A calibration station to calibrate the energy meters against a known reference standard
• A functional test station to verify that the energy meters are functioning properly
• A computer system to control the line and record the results

Typical operating sequence:

1. The energy meters are loaded onto the conveyor system.
2. The conveyor system transports the energy meters to the calibration station.
3. The calibration station calibrates the energy meters against a known reference standard.
4. The conveyor system transports the energy meters to the functional test station.
5. The functional test station verifies that the energy meters are functioning properly.
6. The computer system records the results of the calibration and functional tests.
7. The energy meters are unloaded from the conveyor system.

In addition to calibrating energy meters and verifying their functions, a fully automatic energy meter calibration and functional verification line can perform the following tasks:

• Tighten screws
• Measure meter error curves
• Perform communication tests

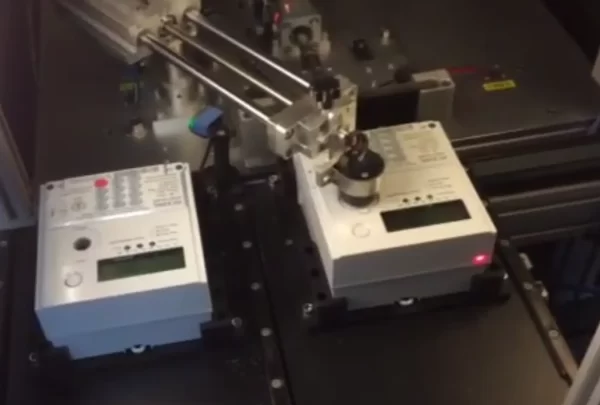

• Check smart meter LCDs
• Check nameplate consistency

These tasks can be performed either manually or automatically, depending on the specific system.

Fully automatic energy meter calibration and functional verification lines offer several advantages over manual calibration methods:

• High throughput:  the line can calibrate and verify large numbers of energy meters in a short time.
• Accuracy:  the line uses precision calibration and test equipment to calibrate and verify energy meters with high accuracy.
• Repeatability:  the line is designed to produce consistent results over time, regardless of the operator.
• Ease of use:  the line is easy to operate and maintain.

Fully automatic energy meter calibration and functional verification lines help ensure meter accuracy and reliability. This supports correct billing and efficient grid operation for consumers and energy providers.
