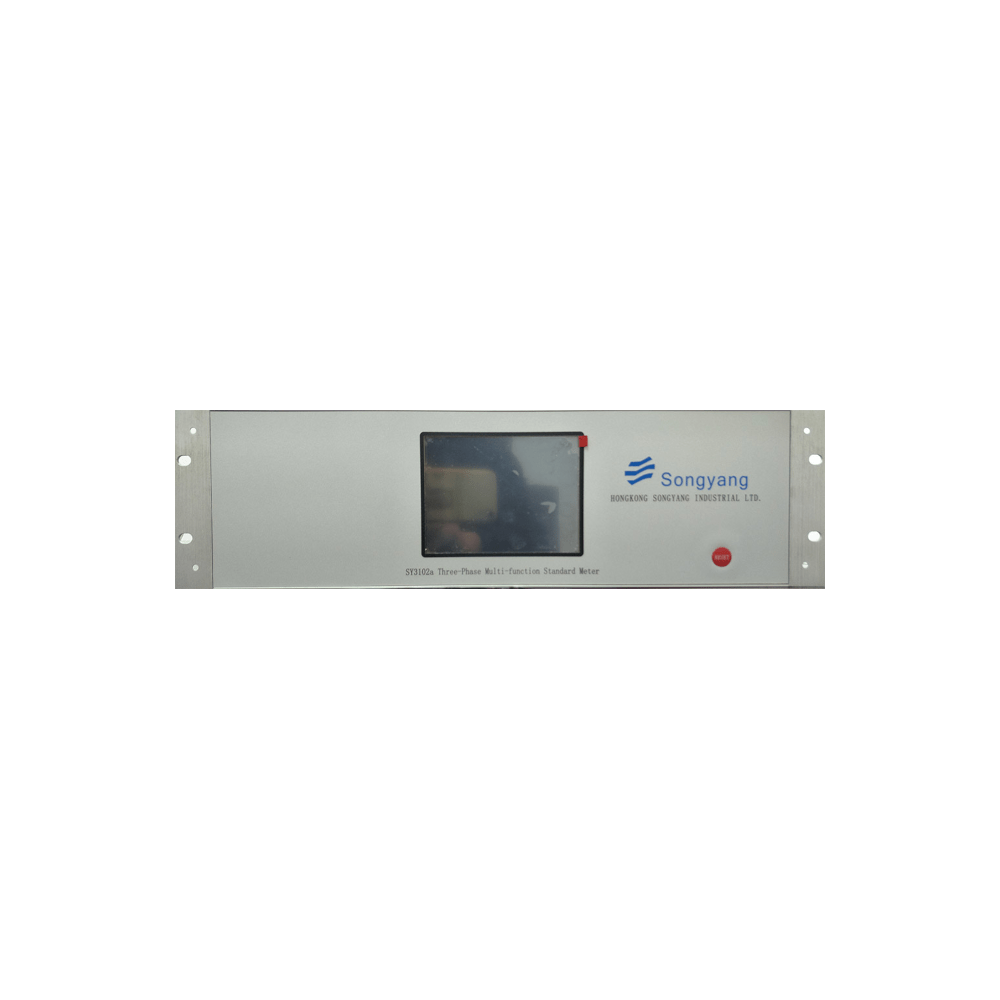

SY3102a three-phase reference standard meter, front panel.

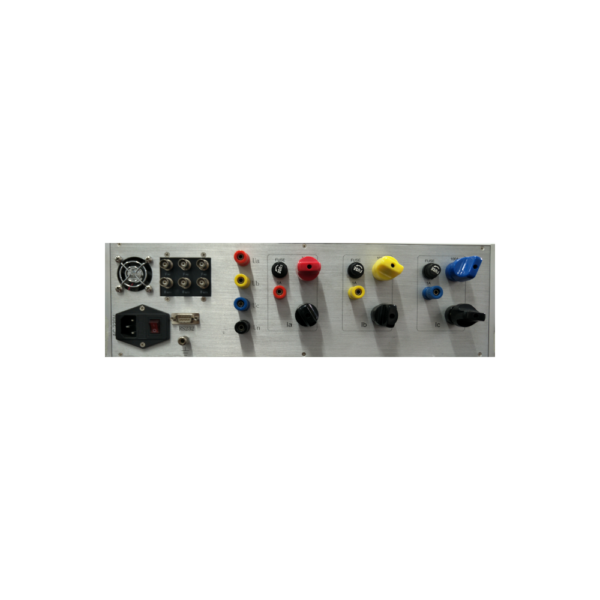

SY3102a reference meter rear panel and connection terminals.
  1. SY3102a three-phase reference standard meter, front panel.
  2. SY3102a reference meter rear panel and connection terminals.

SY3102a Three-Phase Reference Standard Meter (RSM)

Reference Standard Meter (RSM) Features
  • Accuracy class: 0.02 / 0.05
  • Voltage range: 30 V … 560 V (P-N)
  • Current range: 1 mA … 120 A
  • Frequency: 40 … 70 Hz
  • Maximum input pulse frequency: 2 MHz (TTL)
Category:

Measurement modes: Measures AC voltage, current, power (active, reactive, and apparent), and electrical energy in all four quadrants. Supported connections include single-phase, three-phase four-wire Y, and three-wire Δ. Reactive power and energy can be measured using true reactive, cross-phase reactive, and artificial-neutral-point methods.
