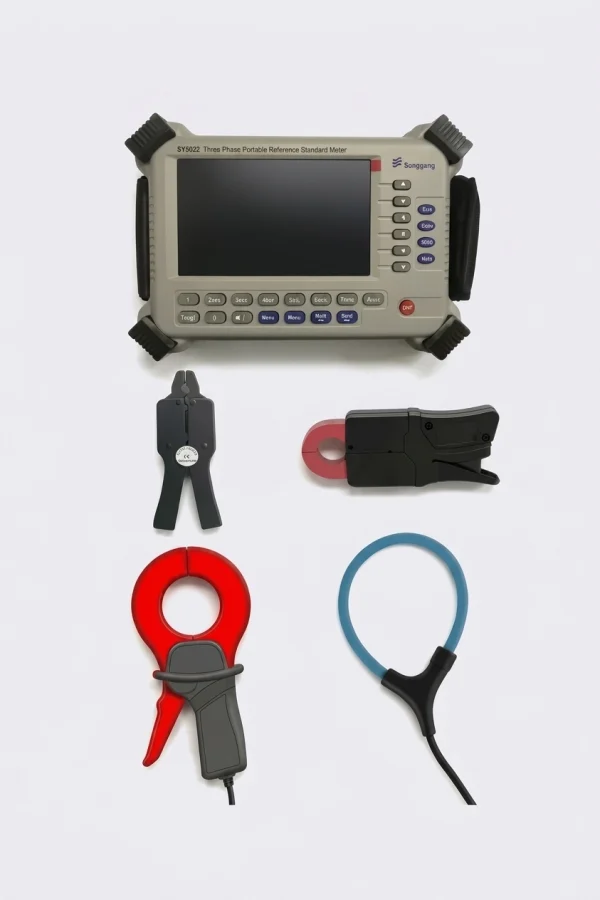

SY3632 on-site calibrator with current clamps and test leads.

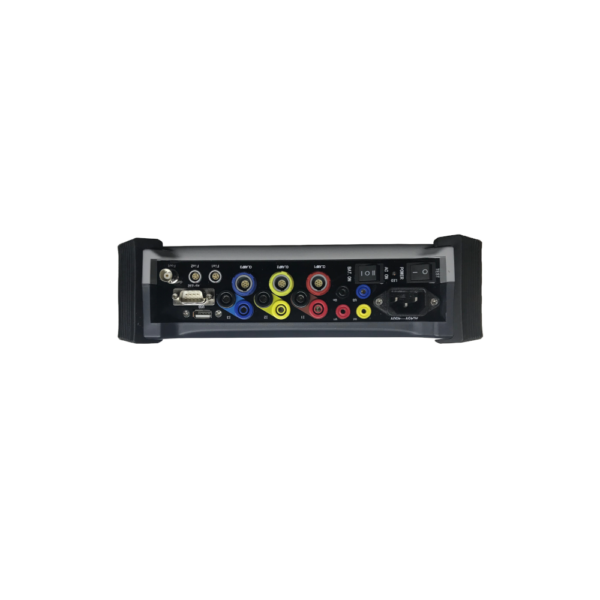

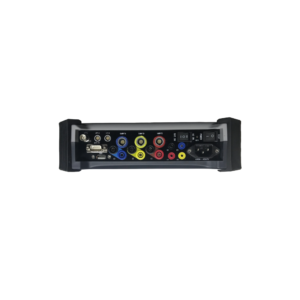

SY3632 on-site calibrator connection terminals.

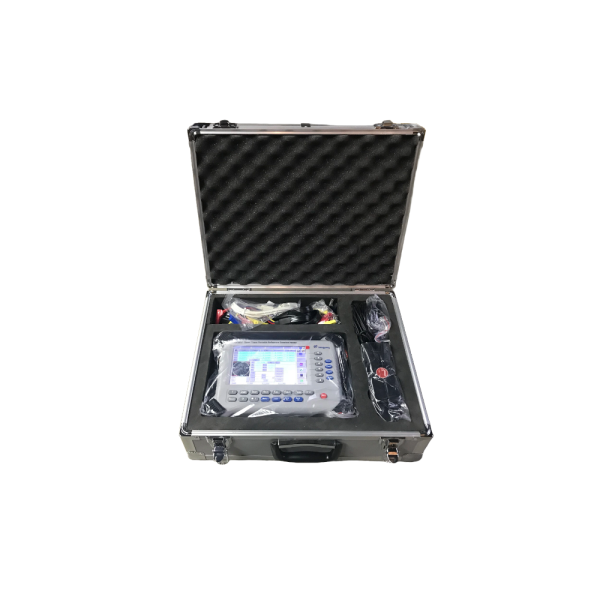

SY3632 on-site calibrator with its carrying case.
  1. SY3632 on-site calibrator with current clamps and test leads.
  2. SY3632 on-site calibrator connection terminals.
  3. SY3632 on-site calibrator with its carrying case.

SY3632 Three-Phase On-Site Calibrator

On-Site Calibrator Features
  • Accuracy class: 0.05 (terminal input); 0.2 (clamp input)
  • Voltage range: 30 V … 560 V (P-N)
  • Current range: 10 mA … 12 A (terminal input)
  • Current clamp options: 5 A, 20 A, 100 A, 200 A, 500 A, 1000 A, 2000 A
  • Frequency: 40 … 70 Hz
  • Maximum input pulse frequency: 2 MHz (TTL)
Category:

The SY3632 on-site calibrator measures AC voltage, current, power (active, reactive, and apparent), and electrical energy in four-quadrant mode. Supported connections include single-phase, three-phase four-wire Y, and three-wire Δ. Reactive power and energy measurement options include true reactive, cross-phase reactive, and artificial-neutral-point reactive modes.
