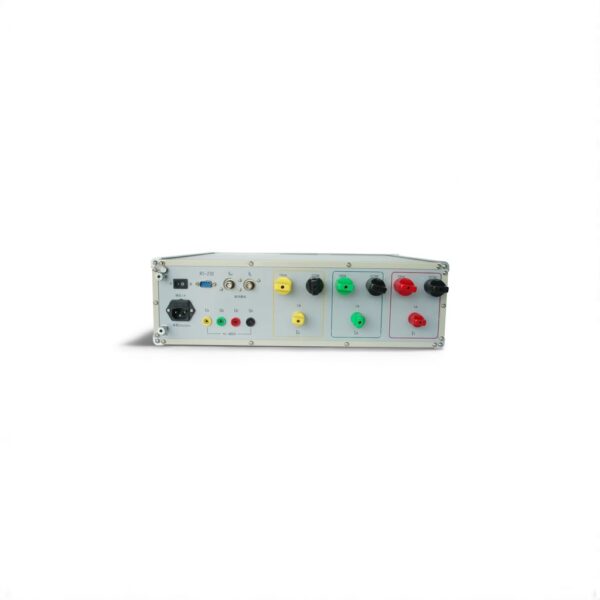

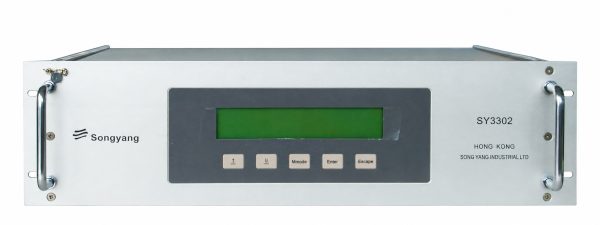

SY3302 Three Phase Reference Standard Meter
Reference Standard Meter is a primary reference standard to calibrate energy meters
- Accuracy class 0.05
- Voltage range 30V … 480V (P-N)
- Current range 10mA … 120A
- Frequency 45 … 65Hz
Measurement of various ways: It has ability to measure AC voltage, current, power (active power, reactive power, apparent power) and electric energy in four-quadrant with connection modes such as single-phase and four-wire three-phase Y/ three-wire Δ. In addition, it can measure reactive power and electric energy with ways of true reactive, cross-phase reactive power, artificial neutral point of reactive power.
