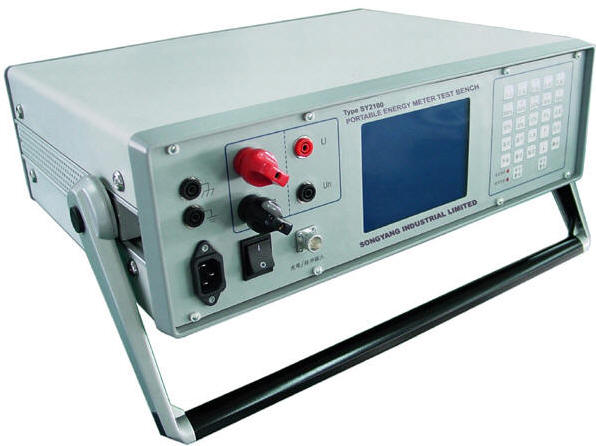

Portable Test Bench For Single Phase Energy Meter

Functions and Features:

• Anthropomorphize design, Large size LCD display, easy operation

• High stability, good reliability. Reasonable internal structure

• Compliance with IEC736.ISO9001 certificate

• Automatic switchover of voltage or current output to protect equipment when voltage circuit short or current circuit open and alarm display on LCD

• Voltage/current output soft start/stop

• Auto test

• Report data store & transfer to PC

Technical Parameters:

• Accuracy of test equipment: Class 0.2 ,0.3

• Accuracy of energy standard: Class 0.1 ,0.2

• Output Voltage: 220V
  Regulative range:  0--120% adjustable
  Minimum adjustable step: 0.01%

• Output Current range: From 0-50A(60)A / 0-20A
  Regulative range: 0--120% adjustable
  Minimum adjustable step: 0.01%
  Current load point: 5%, 10%, 20%, 50%, 100%, 200%, 400%

• Output  frequency: 45.0—65.0Hz  0.01HZ adjustable

• Output U/I phase: 0 – 359.9°  0.1° adjustable

• Test point: 0.5(C), 0.8(C), 1.0, 0.5(L), 0.8(L)

• Output power stabilization: <0.1% (3 minutes) PF=1.0

• Output Wave distortion degree: <0.5%

• Output voltage circuit capacity: 30VA

• Output current circuit capacity: 40VA

• Photoelectric sensor is automatic to receive the black index zone of meters  (without regulation).

• Power supply: 180~240V, AC 45~65Hz, maximum input power:200VA

• Working ambient

  Temp. Range: 25^oC ± 5^oC

Humidity Range:   <85% RH

• Dimension:  480×360×140mm

• Weight:  15kg
